AEM6.3 Component node names on the page Using Touch UI (coral)

  • August 2, 2019
  • 4 replies
  • 2178 views

Hi ,

We are using both classic and touch ui dialog

Classic UI:-

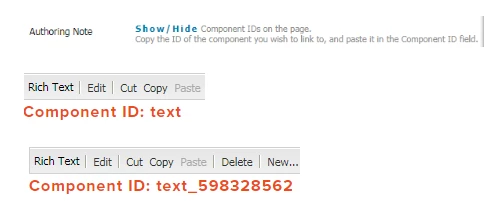

In the Classic UI dialog for a component, We have mechanism that when he click on a link  in that dialog  it would show or hide all the components name (i.e the node name of the component)  like below based on hide/ show mechanism using css class

Touch UI:-

I would want to implement the same mechanism for touch UI .Please let know how could i implement it in touch ui also  which  coral3 component to use.

Also i found when we hit the url  in touch ui in  edit view we cannot see the frame source, only in the preview mode we can see the frame source.Not sure if this could block this behavior.

So i need the component id in edit mode as that is were the dialog is available to Author

Thanks.

    This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
    Best answer by arunpatidar

    Hi,

    Why do you want to implement this.

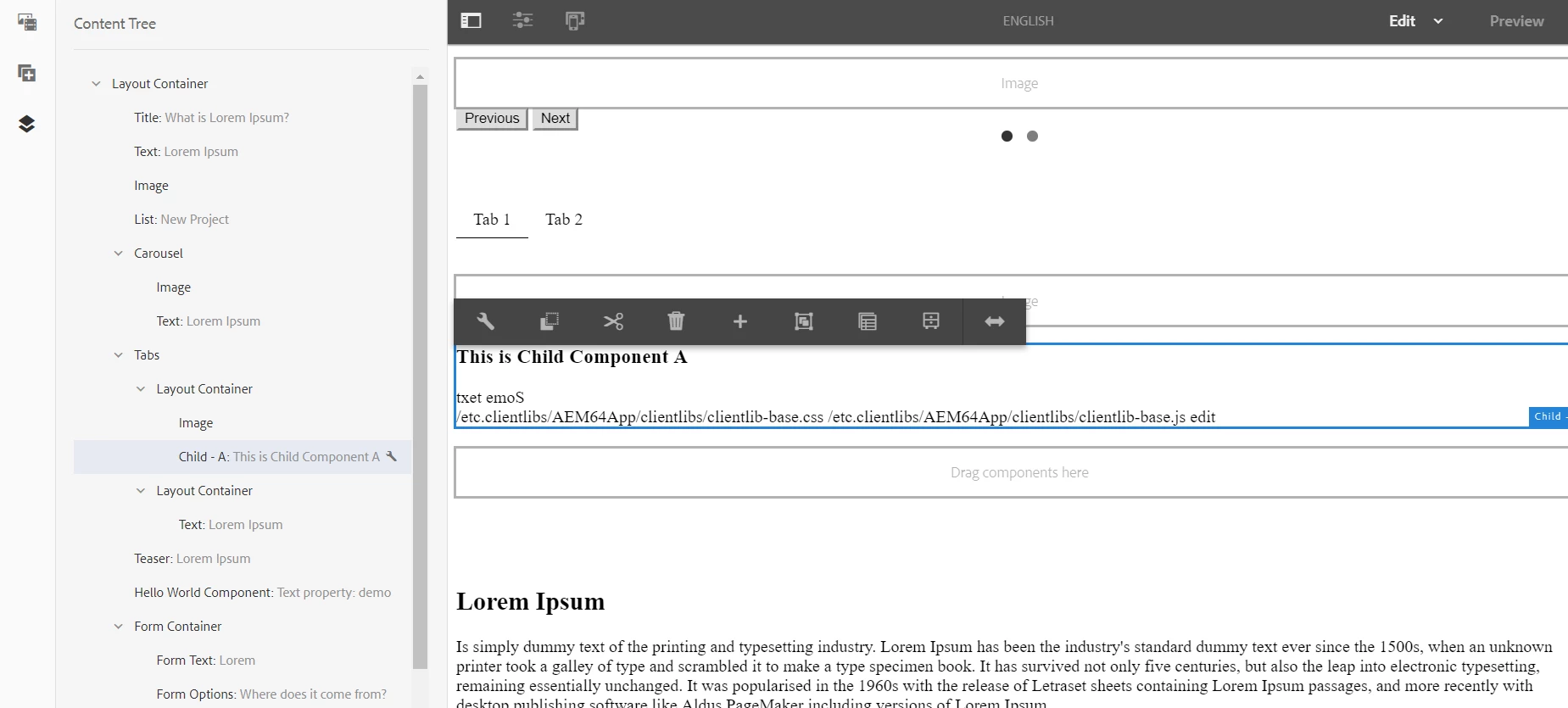

    You can see and navigate the components using content tree from side panel.

    4 replies

    arunpatidar
    Community Advisor
    arunpatidarCommunity AdvisorAccepted solution
    Community Advisor
    August 2, 2019

    Hi,

    Why do you want to implement this.

    You can see and navigate the components using content tree from side panel.

    Arun Patidar
      A
      Adobe Employee
      aemmarc2Adobe Employee
      Adobe Employee
      August 2, 2019

      Must smash round peg in this square hole because "business requirements"

      arunpatidar
      Community Advisor
      arunpatidarCommunity Advisor
      Community Advisor
      August 2, 2019

      I am not sure if this can be possible, Though you can get component id (path) e.g. when dialog is open you can get path using

      $('.cq-Dialog .coral3-Dialog-wrapper form').attr('action');

      Show hide edit content for others

      $('#OverlayWrapper').find('div[data-path]').not('div[data-path="/content/AEM64App/en/jcr:content/root/responsivegrid/text"]').show();

      $('#OverlayWrapper').find('div[data-path]').not('div[data-path="/content/AEM64App/en/jcr:content/root/responsivegrid/text"]').hide();

      but preview content will always be available inside iframe.

      Arun Patidar
      srinivas_chann1
      srinivas_chann1Author
      Level 7
      August 8, 2019

      Hi ,

      I found that for all components which they are showing they have added inline style css which i need to just show  or hide using

      <div class="cssCommonClassforComponentId" style="display: none;">Component ID: text_6c72</div>

      $(".cssCommonClassforComponentId").toggle();

      1>But in touch ui when i hit the console(f12)  in edit mode using the code $(".cssCommonClassforComponentId").toggle(); it does not work not sure what is wrong.

      But when i inspect that element and again fire the code in console then it comes up. Strange but how could i solve this issue.

      2>Also need inputs as  how i create a clickable link in touch ui  which can be captured using below

      $(document).on("click", ".granite class name ", function(e) {

              $(".cssCommonClassforComponentId").toggle();

          });


      I am not sure if the below will work:-

      1. Open the touch UI dialog click on the dialog link that I am planning to create it should start showing the component id.

      2.Close the dialog  as the html content cannot be viewed when dialog is open  and copy manually all fields i need  in notepad.

      3.Now again open the touch UI dialog and hit the link again so that it stops displaying the component ids.

      Let me know if you think if there are any other possibility
