AEM and ACDL integration

  • May 8, 2024
  • 2 replies
  • 1258 views

We are trying to integrate ACDL with our AEM code base, with core components version 2.22.12. Since its an existing code base and hence as per the article https://experienceleague.adobe.com/en/docs/experience-manager-core-components/using/developing/data-layer/overview#events-components, we enabled datalayer integration for core components via context-aware configuration. Ideally as per the documentation this would enable the datalayer object for core components. however we see this object as blank. We are trying to understand if this feature should bring in this data by default or we need to write custom code for this.



This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.
Best answer by manisha594391

 Thanks all !!

I have successfully integrated ACDL with AEM. Posting the steps here, so that it can help everyone. Happy learning 🙂

1. Upgrade core.wcm.components version to 2.9.0 or higher if not already done.



2. Since was enabling this capacity in older codebase, hence had to manually enable the context aware configuration for this for our sites using below steps. Or you can copy this node from wknd site to your site node.



3. Now if the page component has been extended for your site, make sure it would include the below script in body tag. You can refer ootb page component rendering html -> /apps/core/wcm/components/page/v2/page/page.html




id="${page.id}"
data-cmp-data-layer-enabled="${page.data ? true : false}">
<script data-sly-test.dataLayerEnabled="${page.data}">
window.adobeDataLayer = window.adobeDataLayer || [];
adobeDataLayer.push({
page: JSON.parse("${page.data.json @ context='scriptString'}"),
event:'cmp:show',
eventInfo: {
path: 'page.${page.id @ context="scriptString"}'
}
});
</script>




4. This would enable acdl for pages in your site. To test this go to published view of the page and type window.adobeDataLayer.getState() in console.

5. With this you will get empty page object. Now in order to populate this, you will have to override getData() method in your extended custom model. Below could be used, if we just need whatever is exposed ootb->

@Self
@Via(type = ForcedResourceType.class, value = "core/wcm/components/page/v2/page")
private Page superTypePage;
@Override
public ComponentData getData() {
return superTypePage.getData();
}

6. Thi same could be achieved for any extended ootb components, by overriding the get data method in extended slingmodel and adding datalayer data attribute in extended rendering html using below code ->

data-cmp-data-layer="${<model sly use reference>.data.json}"



Reference articles ->

https://experienceleague.adobe.com/en/docs/experience-manager-core-components/using/developing/data-layer/overview
https://github.com/adobe/adobe-client-data-layer/blob/master/README.md
https://unpkg.com/browse/@adobe/adobe-client-data-layer@2.0.1/dist/adobe-client-data-layer.min.js
https://experienceleague.adobe.com/en/docs/experience-manager-learn/sites/integrations/adobe-client-data-layer/data-layer-customize#set-up-wknd-site


https://github.com/adobe/aem-guides-wknd
https://medium.com/@abhaymishra12/customizing-adobe-client-data-layer-during-adobe-analytics-implementation-9dc357c8068e

2 replies

Bhuwan_B
Community Advisor
Bhuwan_BCommunity Advisor
Community Advisor
May 9, 2024

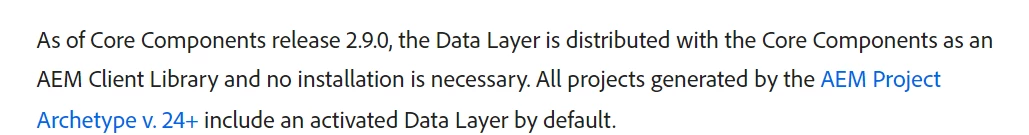

@manisha594391 All projects generated by the AEM Project Archetype v. 24+ include an activated Data Layer by default. To manually activate the Data Layer you must create a context-aware-configuration and add a boolean property enabled and set to true. Also make sure to Add sling:configRef property to jcr:content of your site. Verify activation by loading a page and inspecting Page source in the View as Published, tag should include an attribute data-cmp-data-layer-enabled.



    manisha594391
    manisha594391Author
    Level 4
    May 9, 2024

    Thanks for trh reply Bhuvan ! I already have added the context aware configuration



      manisha594391
      manisha594391AuthorAccepted solution
      Level 4
      May 16, 2024

       Thanks all !!

      I have successfully integrated ACDL with AEM. Posting the steps here, so that it can help everyone. Happy learning 🙂

      1. Upgrade core.wcm.components version to 2.9.0 or higher if not already done.



      2. Since was enabling this capacity in older codebase, hence had to manually enable the context aware configuration for this for our sites using below steps. Or you can copy this node from wknd site to your site node.



      3. Now if the page component has been extended for your site, make sure it would include the below script in body tag. You can refer ootb page component rendering html -> /apps/core/wcm/components/page/v2/page/page.html




      id="${page.id}"
      data-cmp-data-layer-enabled="${page.data ? true : false}">
      <script data-sly-test.dataLayerEnabled="${page.data}">
      window.adobeDataLayer = window.adobeDataLayer || [];
      adobeDataLayer.push({
      page: JSON.parse("${page.data.json @ context='scriptString'}"),
      event:'cmp:show',
      eventInfo: {
      path: 'page.${page.id @ context="scriptString"}'
      }
      });
      </script>




      4. This would enable acdl for pages in your site. To test this go to published view of the page and type window.adobeDataLayer.getState() in console.

      5. With this you will get empty page object. Now in order to populate this, you will have to override getData() method in your extended custom model. Below could be used, if we just need whatever is exposed ootb->

      @Self
      @Via(type = ForcedResourceType.class, value = "core/wcm/components/page/v2/page")
      private Page superTypePage;
      @Override
      public ComponentData getData() {
      return superTypePage.getData();
      }

      6. Thi same could be achieved for any extended ootb components, by overriding the get data method in extended slingmodel and adding datalayer data attribute in extended rendering html using below code ->

      data-cmp-data-layer="${<model sly use reference>.data.json}"



      Reference articles ->

      https://experienceleague.adobe.com/en/docs/experience-manager-core-components/using/developing/data-layer/overview
      https://github.com/adobe/adobe-client-data-layer/blob/master/README.md
      https://unpkg.com/browse/@adobe/adobe-client-data-layer@2.0.1/dist/adobe-client-data-layer.min.js
      https://experienceleague.adobe.com/en/docs/experience-manager-learn/sites/integrations/adobe-client-data-layer/data-layer-customize#set-up-wknd-site


      https://github.com/adobe/aem-guides-wknd
      https://medium.com/@abhaymishra12/customizing-adobe-client-data-layer-during-adobe-analytics-implementation-9dc357c8068e
