Deploying mesh backend project using app builder gives auth error

  • April 27, 2025
  • 3 replies
  • 919 views

Hi Team,



I have created mesh project on local and its working fine. Then i have created project using aio app init and in actions folders added required files as i don't have UI only backend mesh action so i want to deploy this only.

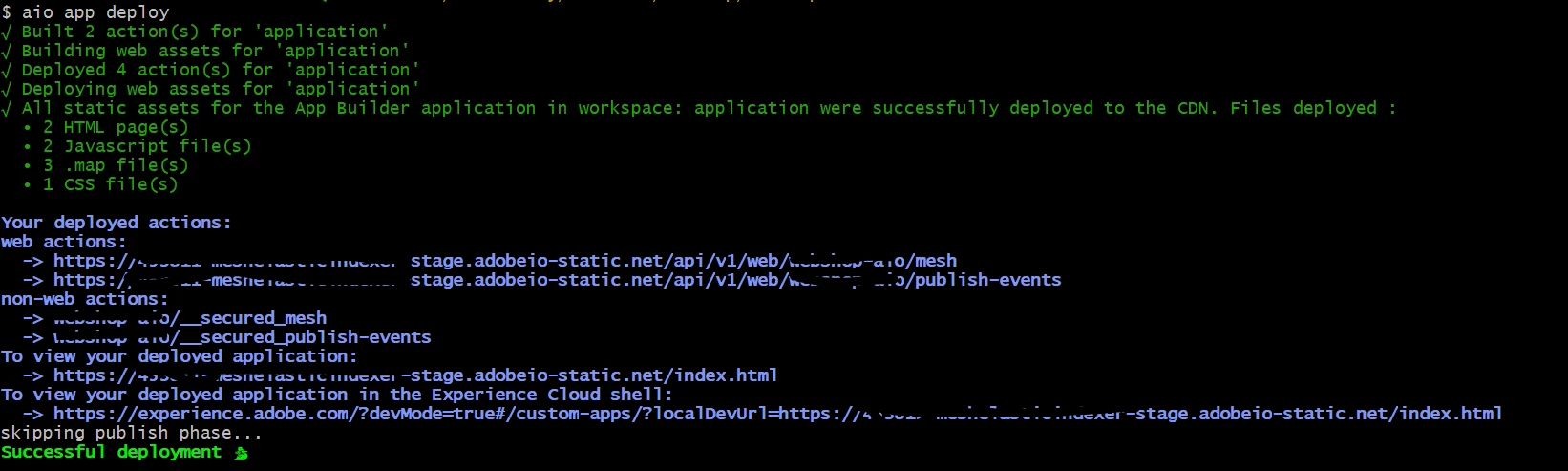

I have used aio app deploy and it has deployed web and non-web actions like



when u try to access
-> https://xxx-poc-stage.adobeio-static.net/api/v1/web/<xy>/mesh then i says

curl -H "Authorization: Bearer Apikey" -H "x-gw-ims-org-id: @xx59_X@AdobeOrg" https://xxx-poc-stage.adobeio-static.net/api/v1/web/project/mesh
{
"error": "request is invalid, reason: failed authorization. Please verify your token and organization id."
}

and for secured:

curl -H "Authorization: Bearer APikey" -H "x-gw-ims-org-id: @AdobeOrg" https://xx-poc-stage.adobeio-static.net/api/v1/web/project/__secured_mesh
{
"code": "8iPxEOyhU2lHIT7HhFC5DwZLkmXhxLpK",
"error": "The requested resource does not exist."
}

Manifest.yml:

packages: project: actions: mesh: function: actions/mesh/index.js runtime: 'nodejs:18' web: yes annotations: require-adobe-auth: false inputs: LOG_LEVEL: debug



Can anyone help here.. what i am missing as api key is already generated and using for auth.

TIA





Best answer by AnkitJasani29

Hi @heenamadan ,



You may want to check the following points to help resolve the issues you're encountering:



  1. Double-check that the x-gw-ims-org-id header is correct, matching the Adobe Org ID for your project.
  2. Ensure that the API key (Authorization: Bearer Apikey) you're using has the necessary permissions to access the mesh actions and associated resources.
  3. Verify that the API key is correctly configured with the correct scope, ensuring it can interact with the mesh and any related Adobe services.
  4. Ensure that the action name in the URL (mesh) matches the name specified in your manifest.yml file. It seems like you are using mesh in the action definition, but ensure it's correctly mapped and deployed.
  5. Double-check the deployment process to make sure the resources have been properly deployed to the correct path in Adobe I/O.
  6. Check the action's availability after deployment to ensure it's accessible at the given endpoint.

3 replies

AnkitJasani29
AnkitJasani29Accepted solution
Level 6
April 28, 2025

Hi @heenamadan ,



You may want to check the following points to help resolve the issues you're encountering:



  1. Double-check that the x-gw-ims-org-id header is correct, matching the Adobe Org ID for your project.
  2. Ensure that the API key (Authorization: Bearer Apikey) you're using has the necessary permissions to access the mesh actions and associated resources.
  3. Verify that the API key is correctly configured with the correct scope, ensuring it can interact with the mesh and any related Adobe services.
  4. Ensure that the action name in the URL (mesh) matches the name specified in your manifest.yml file. It seems like you are using mesh in the action definition, but ensure it's correctly mapped and deployed.
  5. Double-check the deployment process to make sure the resources have been properly deployed to the correct path in Adobe I/O.
  6. Check the action's availability after deployment to ensure it's accessible at the given endpoint.
    AmitVishwakarma
    Community Advisor
    AmitVishwakarmaCommunity Advisor
    Community Advisor
    April 29, 2025

    Hi @heenamadan ,

    1. Authorization Header – Incorrect Token Type

    You’re using:

    -H "Authorization: Bearer Apikey"

    Issue: Apikey is not a bearer token. This header expects a JWT or IMS access token, not an API Key.

    Fix: Generate a valid Access Token using Adobe I/O CLI or JWT flow, and replace the placeholder:

    -H "Authorization: Bearer <ACCESS_TOKEN>"

    2. Org ID Format

    You're using:

    -H "x-gw-ims-org-id: @AdobeOrg"

    Issue: The @AdobeOrg placeholder must be replaced with the actual IMS Org ID (something like ABCD123456789@AdobeOrg).

    Fix: Use the real Org ID from your Adobe Developer Console project.

    3. Check Manifest Configuration

    Your manifest snippet looks correct:
    Since require-adobe-auth: false is set, you shouldn't need authentication for basic testing (unless secured path is invoked).

    4. Mismatch in Deployed URL vs Action Name

    Double-check that the deployed action name in the URL exactly matches the action path:

    https://<your-app>.adobeio-static.net/api/v1/web/<package-name>/<action-name>

    From your manifest, the path should be:

    /api/v1/web/project/mesh

    So project is the package name and mesh is the action.

    5. For Secured Endpoint (__secured_mesh)

    The error:

    "error": "The requested resource does not exist."



    Means: Either the action __secured_mesh doesn’t exist or wasn't deployed correctly.

    Fix: Ensure your manifest declares:

    mesh: web: yes __secured_mesh: web: yes annotations: require-adobe-auth: true

    Suggested curl for Non-Secured Action

    Try:

    curl https://xxx-poc-stage.adobeio-static.net/api/v1/web/project/mesh
    If you're still asked for a token despite require-adobe-auth: false, try deploying again with:
    aio app deploy --force


    Regards,
    Amit

    HeenaMadan
    Community Advisor and Adobe Champion
    HeenaMadanCommunity Advisor and Adobe ChampionAuthor
    Community Advisor and Adobe Champion
    April 30, 2025

    worked.. issue with my access only. Thanks everyone

      H
      Henry_Wing-KinLe
      Level 1
      August 26, 2025

      Hi @heenamadan,



      I'm facing a similar issue in my runtime action for some of the users. Can you please elaborate on which access (or permission) is needed for the users?



      Thank you,

      Henry
