Adobe Livecycle Designer row height issue

  • April 24, 2025
  • 2 replies
  • 929 views

I have table within another table and I need to adjust Table Row Height relatively to the row height of main table.

According to documentation I've got a row height of the main table using:



var mainRowHeight = xfa.layout.h(parent.parent.parent, "in");



after that I made some calculations with this value and trying to adjust element height using calculated value:





var calculatedValue = mainRowHeight / 2;//just for example

this.h = calculatedValue + "in";



and nothing happens. However if I just use any other variable height is being adjusted without any issue:



var newHeight = 1.5;

this.h = newHeight + "in"; //this way works perfectly



I tried to convert it to string and to float and vice versa and nothing helps.

how can I adjust value returned from xfa.layout.h() in order to use it for setting height of another element?

This post is no longer active and is closed to new replies. Need help? Start a new post to ask your question.

2 replies

AnkitJasani29
AnkitJasani29
Level 6
April 25, 2025

Hi @dmytrove ,



It seems like the issue could be due to the return type or precision of xfa.layout.h(...). While it returns a numeric value, sometimes it may be returned as a string or as a float with hidden metadata that LiveCycle doesn’t handle well when doing math on it directly.



Fixes to Try:

1) Force the value to a float explicitly before calculation:

var mainRowHeight = parseFloat(xfa.layout.h(parent.parent.parent, "in"));
var calculatedValue = mainRowHeight / 2;
this.h = calculatedValue + "in";



2) Check for undefined or null:

If xfa.layout.h(...) returns undefined or NaN due to layout not being ready or context being incorrect, it won’t work in calculations.



3) Delay the script:

Sometimes xfa.layout.h(...) is not available at the time the script runs. Try placing this logic in an event like layout:ready or calculate.



Also, do accept the solution if any of fixes worked for you so that anyone else also facing something similar can directly go to the right response.



Thanks

    D
    DmytroVeAuthor
    April 25, 2025

    Thanks for reply,

    I tried to put

    parseFloat(xfa.layout.h(parent.parent.parent, "in"));

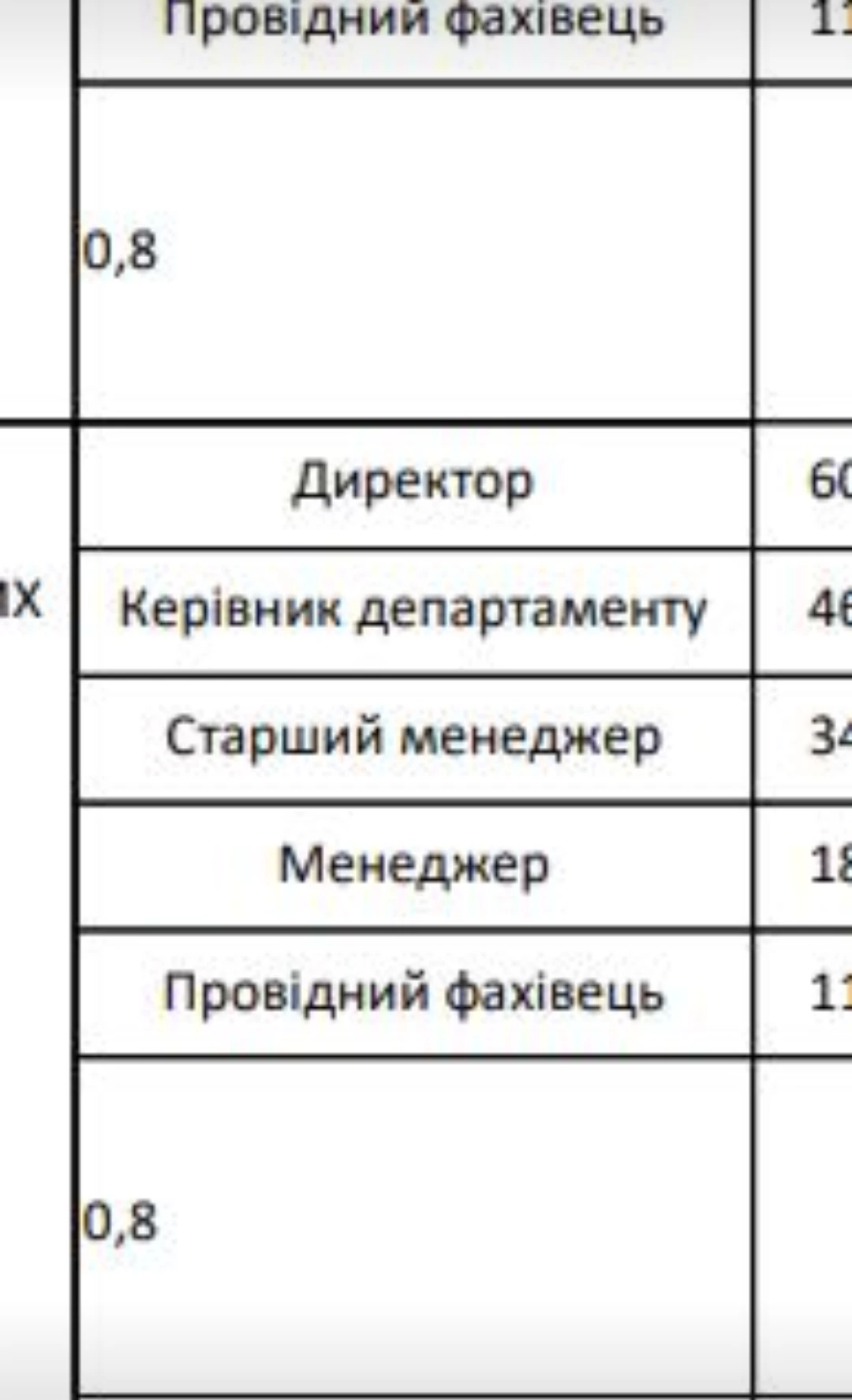

    but it didn't help (value is calculated but height is not being adjusted )

     

     

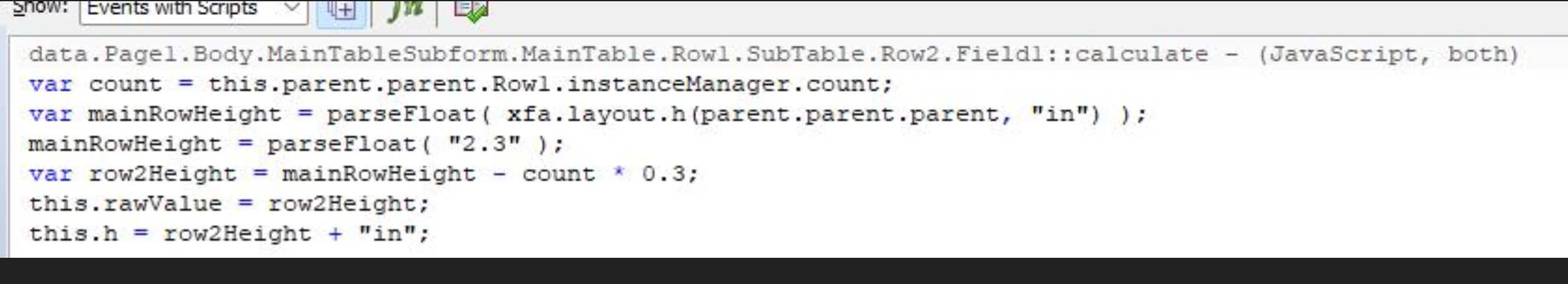

    However if I put parseFloat( "2.3" ); like in line 4

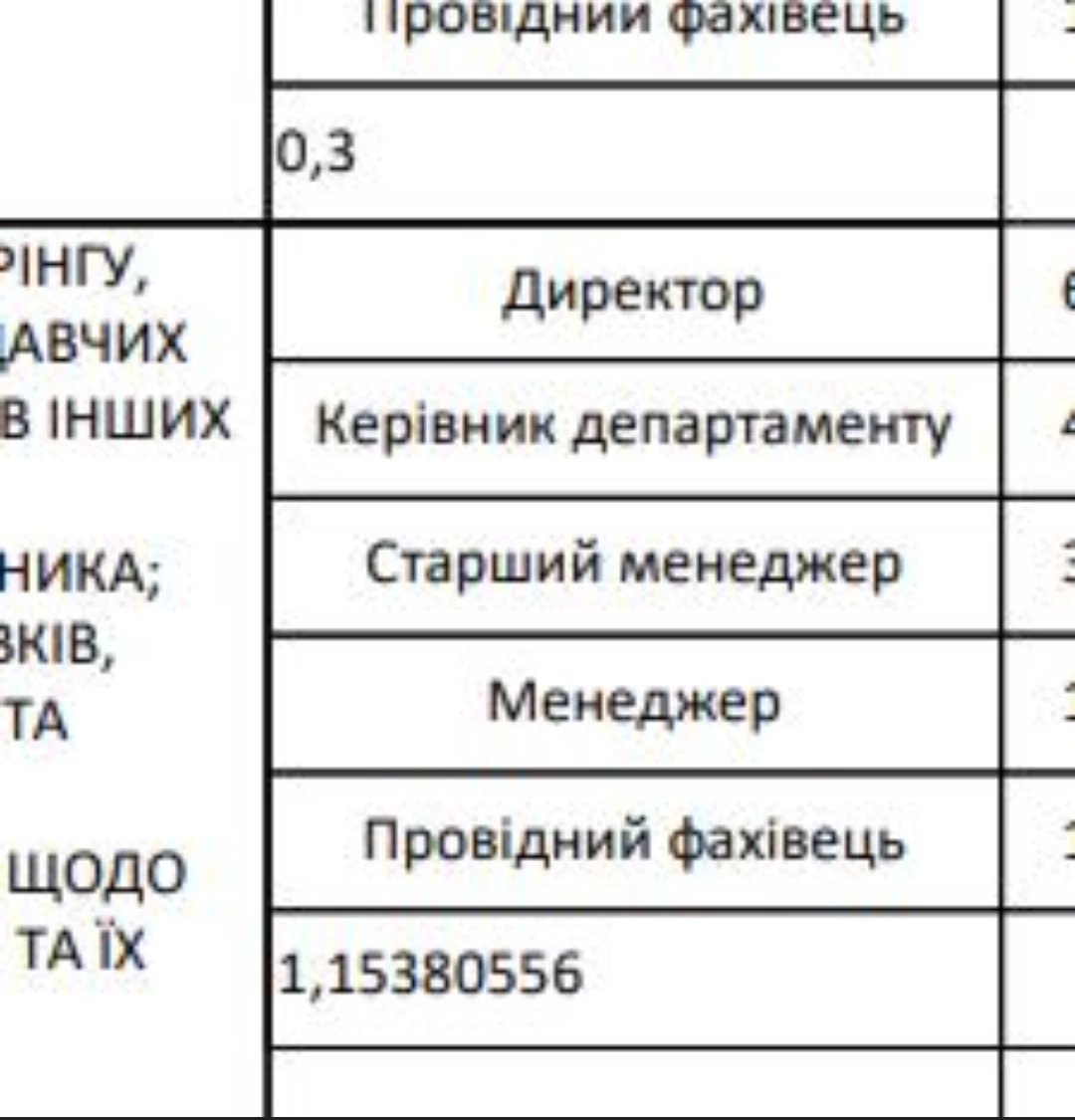

    height is being adjusted correctly:

     

    AnkitJasani29
    AnkitJasani29
    Level 6
    April 25, 2025

    Hi @dmytrove ,



    Please validate with suggested 2nd and 3rd point as well.

      AmitVishwakarma
      Community Advisor
      AmitVishwakarmaCommunity Advisor
      Community Advisor
      April 30, 2025

      Hi @dmytrove ,

      1. Force Primitive Type Handling: First, make sure the value you get from xfa.layout.h() is treated as a pure number and not a complex object.

      2. Ensure Proper Timing: Ensure that the layout is fully ready when you execute your script. If the layout is not ready, the xfa.layout.h() value may not be accessible yet.

      3. Check for No Conflicts: Sometimes, LiveCycle might not update the height dynamically unless explicitly forced to, so we need to directly manipulate the height in a way that LiveCycle expects.

      // Ensure the layout value is accessible and treated as a primitive number var mainRowHeight = parseFloat(xfa.layout.h(parent.parent.parent, "in")); // Ensure it's a valid number if (!isNaN(mainRowHeight)) { // Force a clean primitive value (important for LiveCycle) var stableHeight = +mainRowHeight; // Perform your calculation var calculatedValue = stableHeight / 2; // Adjust as needed // Set the height of the element this.h = calculatedValue + "in"; } else { // Handle error or fallback if value is invalid console.log("Error: Invalid main row height"); }

      Key Points in This Solution:

        - parseFloat ensures that you're working with a numeric value (no hidden strings).

      +mainRowHeight forces the value into a primitive number format, which LiveCycle handles more reliably.

        - Error Handling (isNaN): Ensures that you're only proceeding if the xfa.layout.h() value is valid.

      Direct Height Assignment: By directly assigning the calculated value to this.h, we’re explicitly updating the height.

      Timing Considerations:

      If this still doesn't work as expected, try the following:

      Use Event Handlers: Place the script inside the layout:ready or form:ready event to ensure everything is initialized.

      this.layout.ready = function() { // Place the same script here };


      Regards,
      Amit
